How I Saved a Dead Motorcycle in 60 Seconds (Because of One Simple Mistake)
If you’ve ever tried installing a new motorcycle battery and accidentally crossed the wires, you’re not alone—and you’re definitely not the first rider to be left with a lifeless bike and no clue what just happened.
The good news? This super common mistake has a fast, easy fix—and in today’s post, I’ll walk you through exactly what to do (plus show you step-by-step in the video below).
What Happens When You Cross Motorcycle Battery Wires?
Let’s start with the mistake itself: you hooked up the positive and negative terminals backwards. A bunch of sparks flew, maybe a little panic kicked in, and now your motorcycle won’t start, won’t light up, won’t even flinch.
What you’ve likely done is blown your main fuse—and that’s actually a good thing.
Your fuse did its job. It stopped electricity from frying your bike’s wiring, ignition, or ECU. So take a breath, because all you need to do now is replace that fuse.
Step 1: Find Your Main Fuse

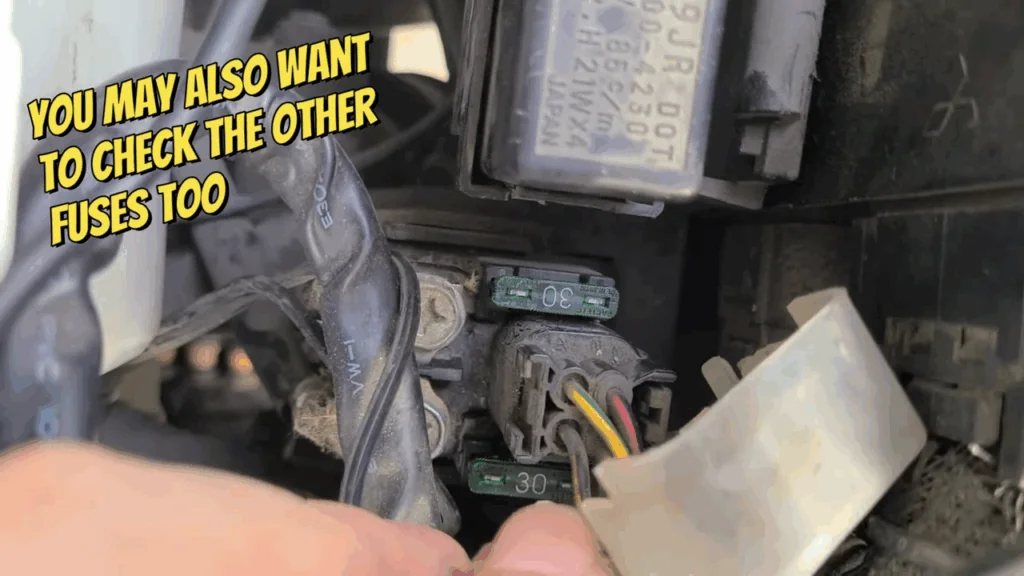

On most motorcycles, the fuse box is located under the seat. In the video example, I’m working on a Suzuki V-Strom 650, where the seat lifts off and reveals a small plastic fuse cover. Look for a 30 amp fuse—this is usually the main fuse, and it’s the one that blows first in this kind of situation.
Pro Tip: A good motorcycle toolkit should always include spare fuses. Most bikes come with at least one extra, but keeping a small pack in your tail bag is smart.
Step 2: Test Before You Replace
If your battery is still showing a healthy charge (around 12.5V or higher) but you’re getting no power to your dash or lights, the main fuse is almost certainly toast. In the video, you’ll see how even with a full battery, nothing works until that one fuse gets swapped.
Step 3: Swap in the Spare

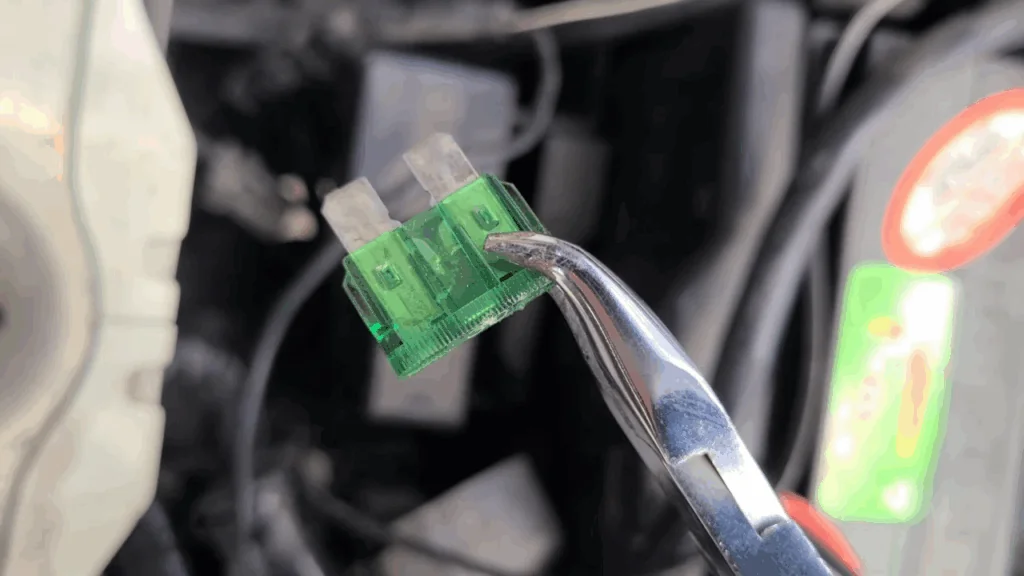

Use needle-nose pliers or your fingers to gently pull the blown fuse out. Slide in a new fuse of the same amperage—never downgrade to a lower amp fuse. If you pulled a 30, replace it with a 30.
As soon as that new fuse clicks into place, you should hear your bike come back to life—dash lights, fuel pump, maybe even a few beeps.
Why This Quick Fix Matters
This kind of electrical issue is intimidating for new riders and non-mechanics, but it’s incredibly easy to handle yourself. I’ve had riders call me thinking they’re going to need motorcycle towing or expensive motorcycle service, when all they needed was a 60-second fuse swap.
Instead of calling for help, you can:
- Carry a couple of fuses
- Learn to access your fuse box
- Learn where your main fuse is (it may be somewhere outside of your fuse box)
- Know how to check and replace motorcycle fuses yourself
Wrapping It Up
You don’t do electrical work or mess with motorcycle batteries every day, so it’s normal if you make a mistake. The important thing is knowing how to get yourself out of trouble.
✅ Bike won’t start after new battery? Check the main fuse.
✅ Sparks when connecting terminals? You might have blown it.
✅ No lights, no dash, full battery? It’s probably the main fuse, not the battery.
If this video helped you get back on the road, check out YouMotorcycle on YouTube, hit that like button, leave a comment, and subscribe. I put out regular motorcycle maintenance tips, how-tos, and ride guides to help fellow riders stay safe and self-sufficient.
Ride safe, but have fun!
Adrian
